Description
Sumner 784760 Description

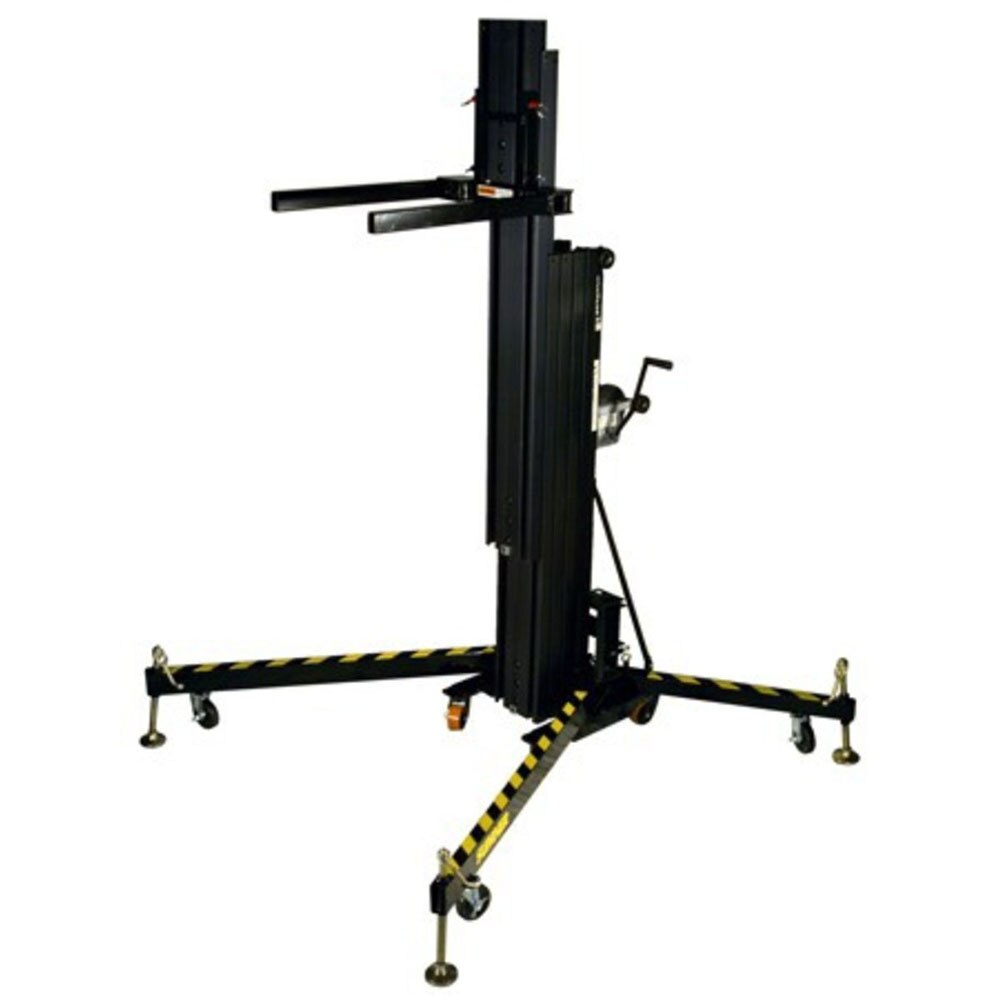

The Sumner* Eventer™ black bodied lift series is specifically designed to meet the needs of theatrical and entertainment industries
Sumner 784760 Includes
- (1) Eventer Lift
Sumner 784760 Features
- Available accessories for lifting and support speakers, lights and other stage equipment
- Sumner* built winch with lifting capacities from 500-800 lbs.
- Compact design with quick assembly and breakdown
- Forks reverse to maximize lifting height
- Included leveling pads to ensure stability
- Black, anodized aluminum telescoping masts fade out on the stage
Sumner 784760 Specifications
| Load capacity (12" load center): | 500 lb |
| Lift weight: | 279 lb |
| Fork width: | 19" |
| Fork length: | 23.5" |
| Fork weight: | 18 lb |
| Boom weight: | 14 lb |
| Winch rotation per foot: | 8 |
| Height stowed: | 78" |
| Length stowed: | 30" |
| Width Stowed: | 24.5" |
| Length operating: | 62" |
| Width operating: | 67" |
| Height - forks up: | 16' 11" |
| Height - forks down: | 15' 11" |
| Height - Boom: | 16' 6" |
| Fork ground clearance: | 3.75" |
| Fork load height: | 5.75" |
