Description
BBSUMNER 3500 Description

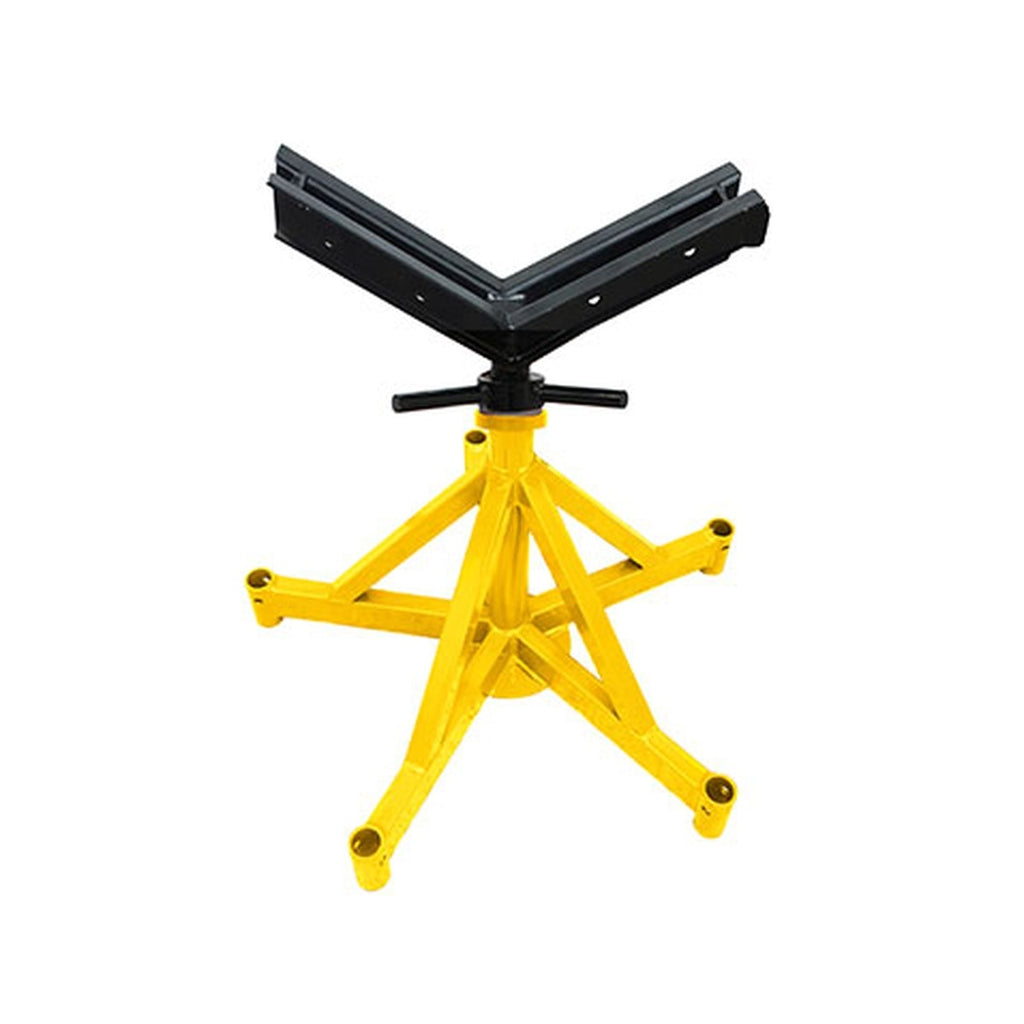

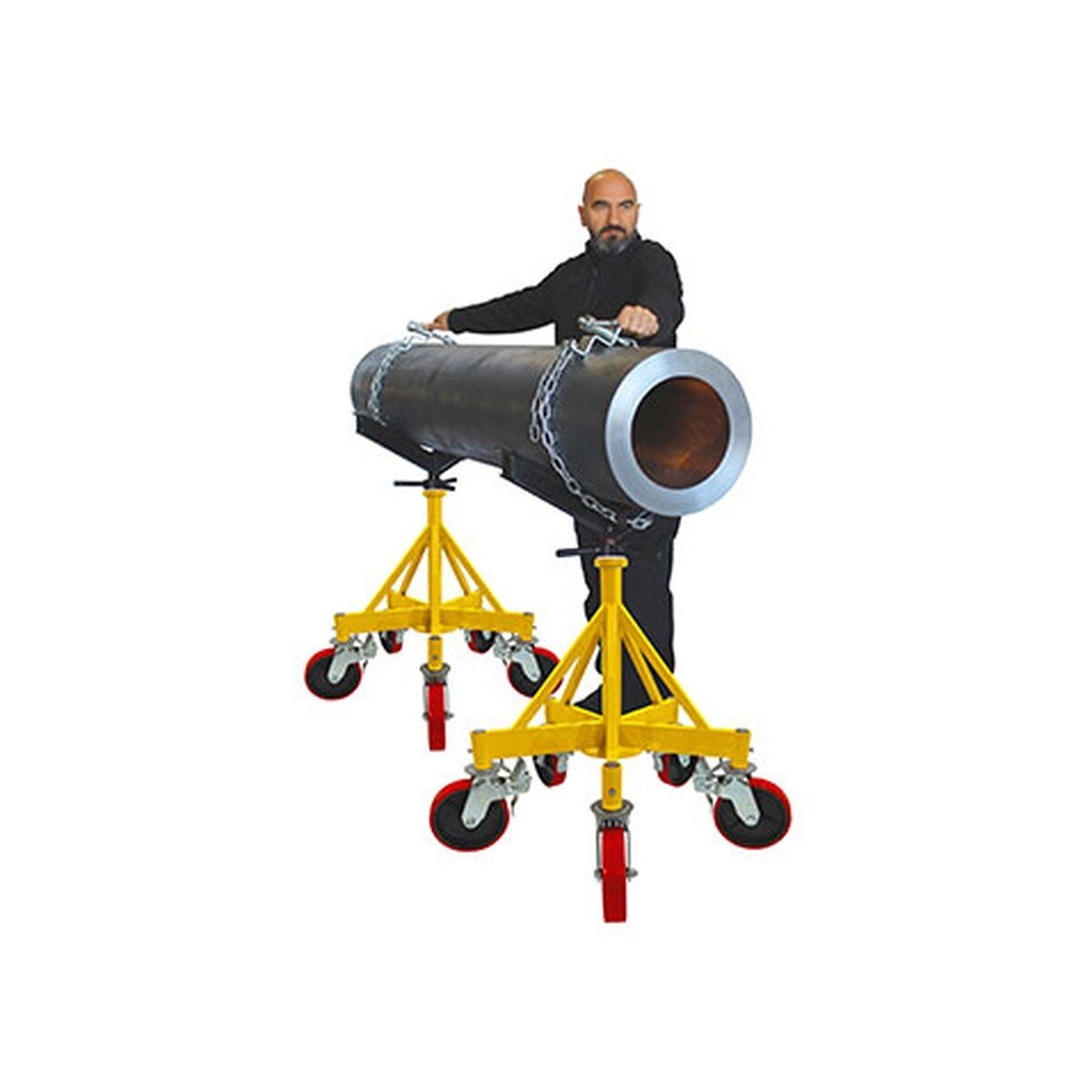

The BBSUMNER Max Jax with V-Head is a high-capacity pipe support stand built for large-diameter pipe handling and shop or jobsite positioning. Featuring a stable five-leg base and adjustable height range, it supports up to 5,000 lbs and accommodates pipe up to 36 in. diameter for dependable support during fabrication and fit-up work.
BBSUMNER 3500 Includes
- (1) Max Jax with V-Head (3500)
BBSUMNER 3500 Features
- V-head design helps cradle and stabilize round pipe during handling and positioning
- 5,000 lb load capacity for heavy-duty support applications
- Supports large-diameter pipe up to 36 in (900 mm)
- Adjustable height range from 32 in to 44 in for flexible setup
- Five-leg base enhances stability on the job
- Caster compatible design supports mobility when equipped with wheels
- 1.75 in ACME-threaded adjustment rod for rugged height adjustment
- Compatible with optional Beam Jax heads and wheel kits for added versatility
BBSUMNER 3500 Specifications
| Product Type | Pipe jack stand |
| Head Type | V-Head |
| Load Capacity | 5,000 lbs (2,265 kg) |
| Max Pipe Capacity | 36 in (900 mm) |
| Height Adjustment Range | 32 to 44 in (812.8 to 1,117.6 mm) |
| Base Style | Five-leg base |
| Threaded Rod | 1.75 in ACME-threaded rod |
| UPC | 810209762230 |
| Shipping Weight | 80 lb |
