Description
B&B Sumner BTH3 Description

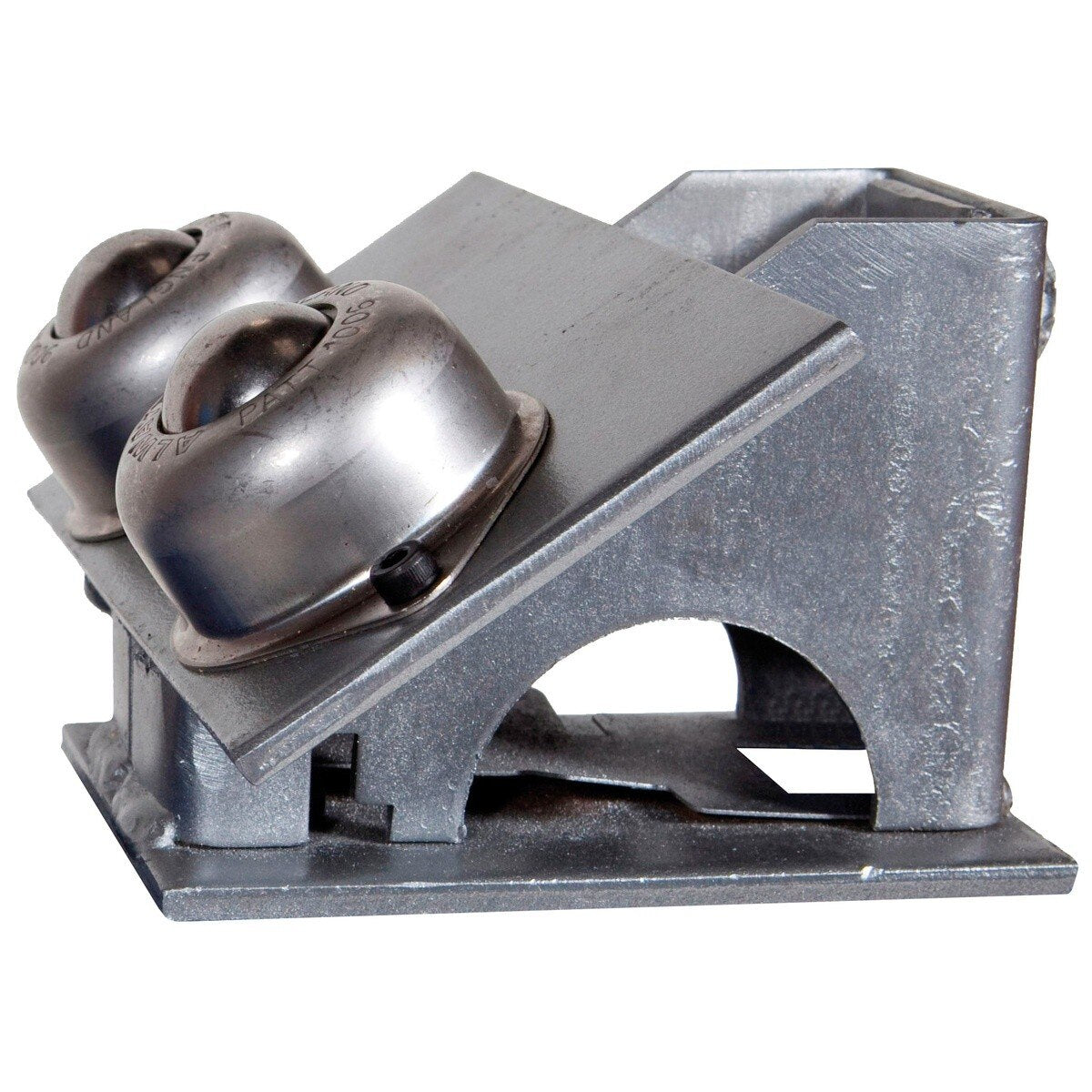

Quick-change stainless steel ball transfer wheel head pair designed for the B&B Sumner Pro Adjust-A-Roll Pipe Stand to enable tool-free, multi-directional pipe movement and precise positioning with high load capacity and corrosion resistance.
B&B Sumner BTH3 Includes
- (1) Quick Change Stainless Steel Ball Transfer Wheel Head (Pair) (Series 3)
B&B Sumner BTH3 Features
- Quick-change design enables tool-free head swaps in seconds
- Supports up to 3,200 lbs (1,450 kg) load capacity
- Stainless steel ball transfers provide multi-directional movement for rotation and positioning
- Stainless steel construction offers corrosion resistance for harsh environments
- Accommodates 2 to 48 inch pipe diameters when used with Pro Adjust-A-Roll
- Designed for seamless integration with B&B Sumner Pro Adjust-A-Roll Pipe Stand
- Compact shipping size: 6 x 6 x 8 inches; shipping weight: 5 lbs
- Facilitates precise adjustment and leveling when integrated with the stand
- Improves job site efficiency by reducing manual effort during pipe positioning
- Built as part of the durable Series 3 product line
B&B Sumner BTH3 Specifications
| Pipe Capacity Diameter | 2 - 48 inches (50.8 - 1,219 mm) |
| Load Capacity | 3,200 lbs (1,450 kg) |
| Head Type | Stainless Steel Ball Transfer Head (Pair) |
| Shipping Weight | 5 lbs (2.5 kg) |
| Shipping Dimensions | 6 x 6 x 8 inches (153 x 153 x 203 mm) |
| Compatibility | B&B Sumner Pro Adjust-A-Roll Pipe Stand |
| Installation | Tool-free, quick-change |
| Material | Stainless Steel |
| Product Series | Series 3 |
| Country of Origin | United States |
