Description
B&B Sumner 4100GVH Description

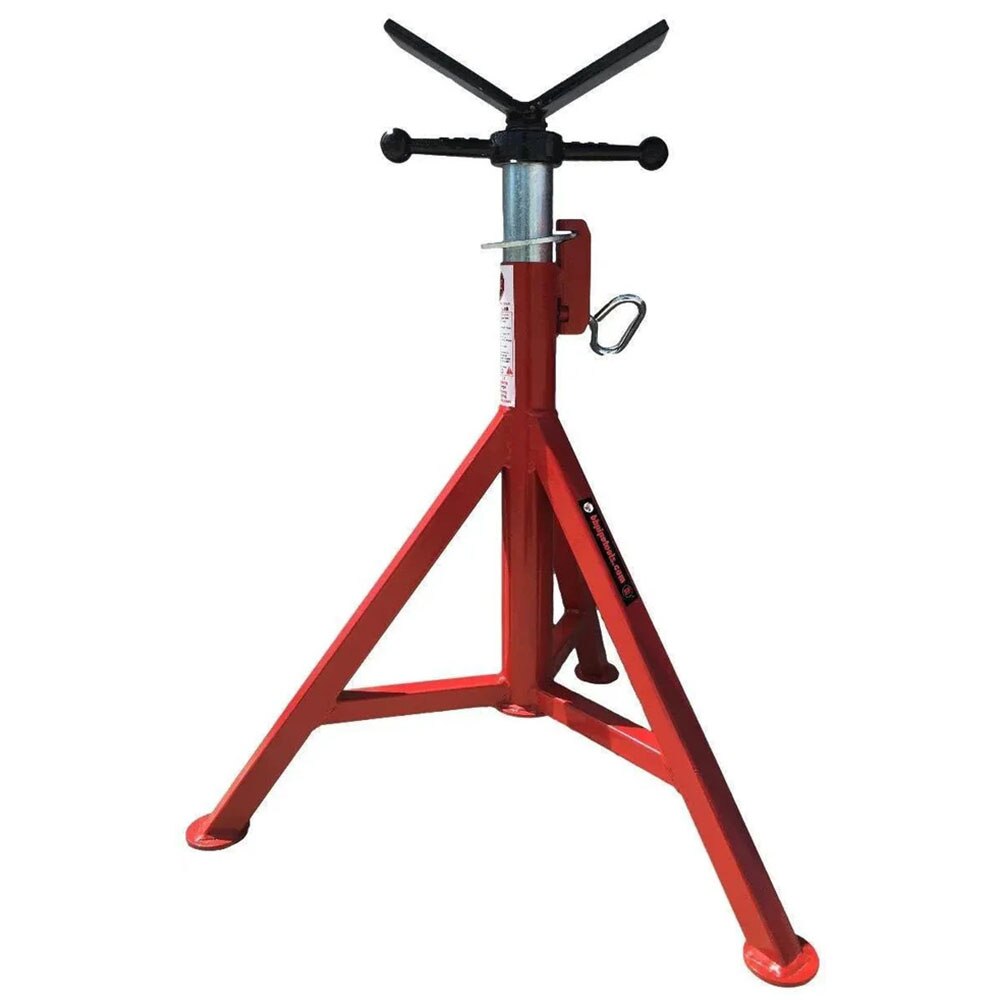

The B&B Sumner Hi Heavy Duty Pro-Jack with Gusset V-Head (4100GVH) is a fixed-leg steel pipe jack built for stable, heavy-duty pipe support, featuring an oversized 10-inch V-head, a 2,500 lb load capacity, and a 28 to 49 inch working height range.
B&B Sumner 4100GVH Includes
- (1) Hi Heavy Duty Pro-Jack with Gusset V-Head (4100GVH)
B&B Sumner 4100GVH Features
- Supports up to 2,500 lbs (1,135 kg)
- Third-party tested with at least a 2:1 safety ratio
- Rugged fixed-leg steel construction
- Oversized square tube legs and braces for durability
- Largest 1 1/2 in. ACME rod for strength and stability
- Increased width stance and square tube bracing for stability
- Gusset V-head with oversized 10 in. V-head for safer pipe handling
- Working height adjusts from 28 in. to 49 in. with quick-lock adjustment
- Holds pipe diameters up to 12 in.
- Safety washer can be locked onto the base for operator protection
B&B Sumner 4100GVH Specifications
| Load Capacity | 2,500 lbs / 1,135 kg |
| Pipe Diameter Capacity | up to 12 in / 300 mm |
| Minimum Working Height | 28 in / 711.2 mm |
| Maximum Working Height | 49 in / 1245 mm |
| Safety Ratio | at least 2:1, third party tested |
| ACME Rod Size | 1 1/2 in (1.5 in) |
| Head Type | Gusset V-head with oversized 10 in V-head |
| Construction Material | Fixed-leg steel |
| Leg/Brace Design | Oversized square tube legs and braces |
| Product Length | 24 inches |
| Product Width | 21 inches |
| Product Height | 29 inches |
| Product Weight | 26 pounds |
| Country of Origin | United States |
