Description
B&B Sumner 4100CRH Description

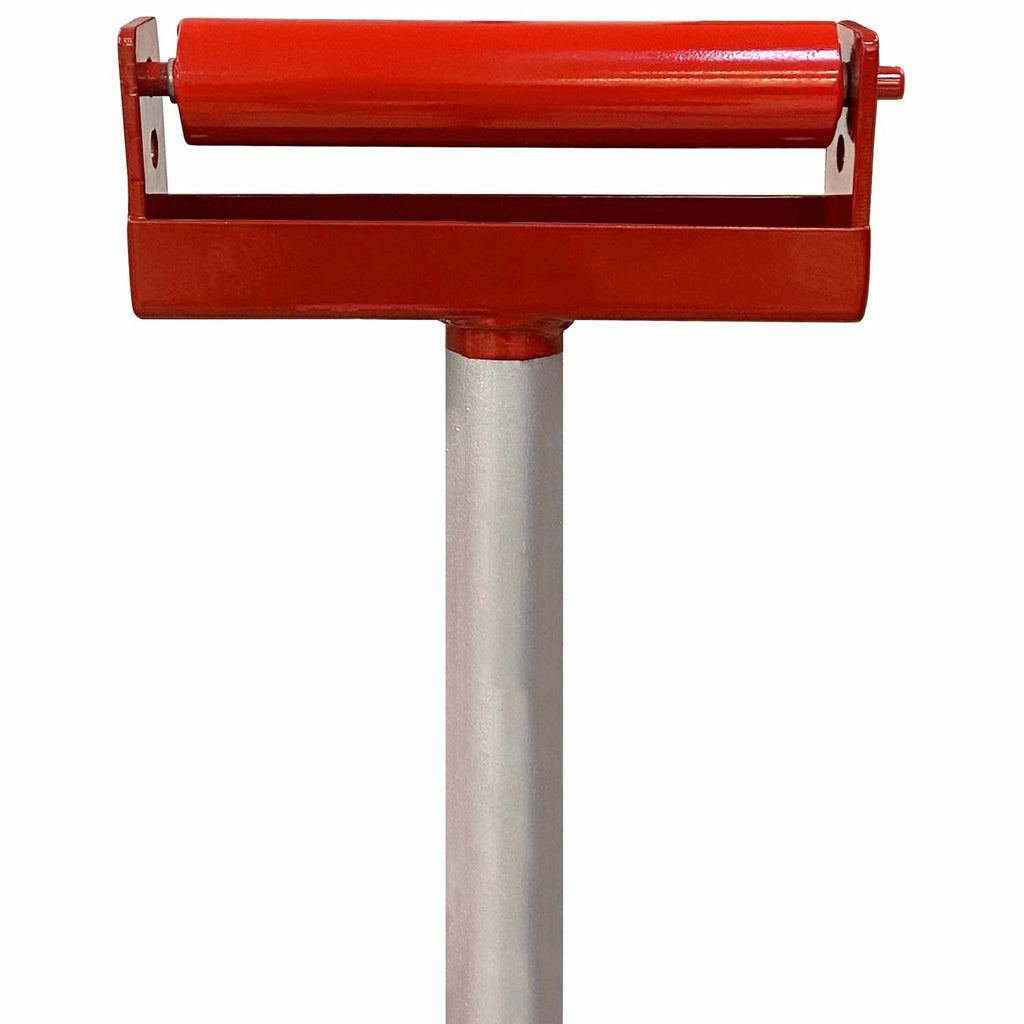

The B&B Sumner Hi Heavy Duty Pro-Jack with Conveyor Roller Head is a rugged fixed-leg pipe jack built for stable support and smooth pipe positioning in industrial and fabrication environments, featuring 550 lb load capacity and adjustable working height from 28 in. to 49 in.
B&B Sumner 4100CRH Includes
- (1) Fixed Leg Pipe Jack with Conveyor Roller Head (Model 4100CRH)
B&B Sumner 4100CRH Features
- Supports heavy pipework with 550 lb (250 kg) load capacity
- Third-party tested with at least a 2:1 safety ratio
- Rugged fixed-leg steel construction with oversized square tube legs and braces
- Conveyor roller head for smooth pipe handling and positioning
- 1 1/2 in. (1.5 in.) ACME rod for strength and longevity
- Adjustable working height range: 28 in. to 49 in.
- Increased width stance and square tube bracing for enhanced stability and rigidity
- Quick lock washer for easy, secure height adjustment
- Accommodates pipe diameters up to 12 in. (300 mm)
- Safety washer can be locked onto the base for increased operator protection
B&B Sumner 4100CRH Specifications
| Load Capacity | 550 lbs / 250 kg |
| Pipe Diameter Capacity | up to 12 in / 300 mm |
| Minimum Working Height | 28 in / 711.2 mm |
| Maximum Working Height | 49 in / 1245 mm |
| Safety Ratio | at least 2:1, third party tested |
| ACME Rod Size | 1 1/2 in (1.5 in) |
| Head Type | conveyor roller head |
| Product Length | 24 inches |
| Product Width | 21 inches |
| Product Height | 29 inches |
| Product Weight | 32 pounds |
| Country of Origin | United States |
