Description
BBSumner 3610 Description

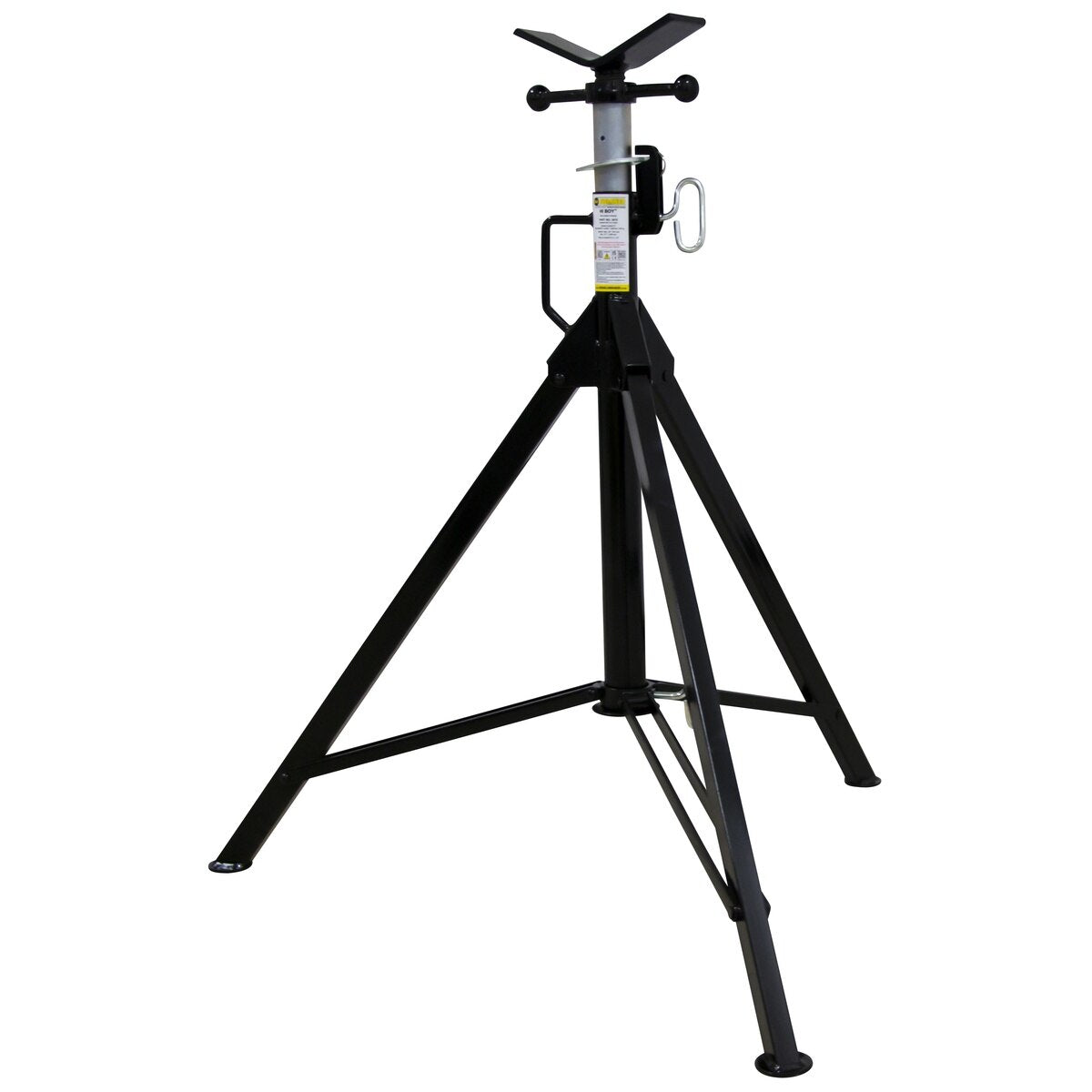

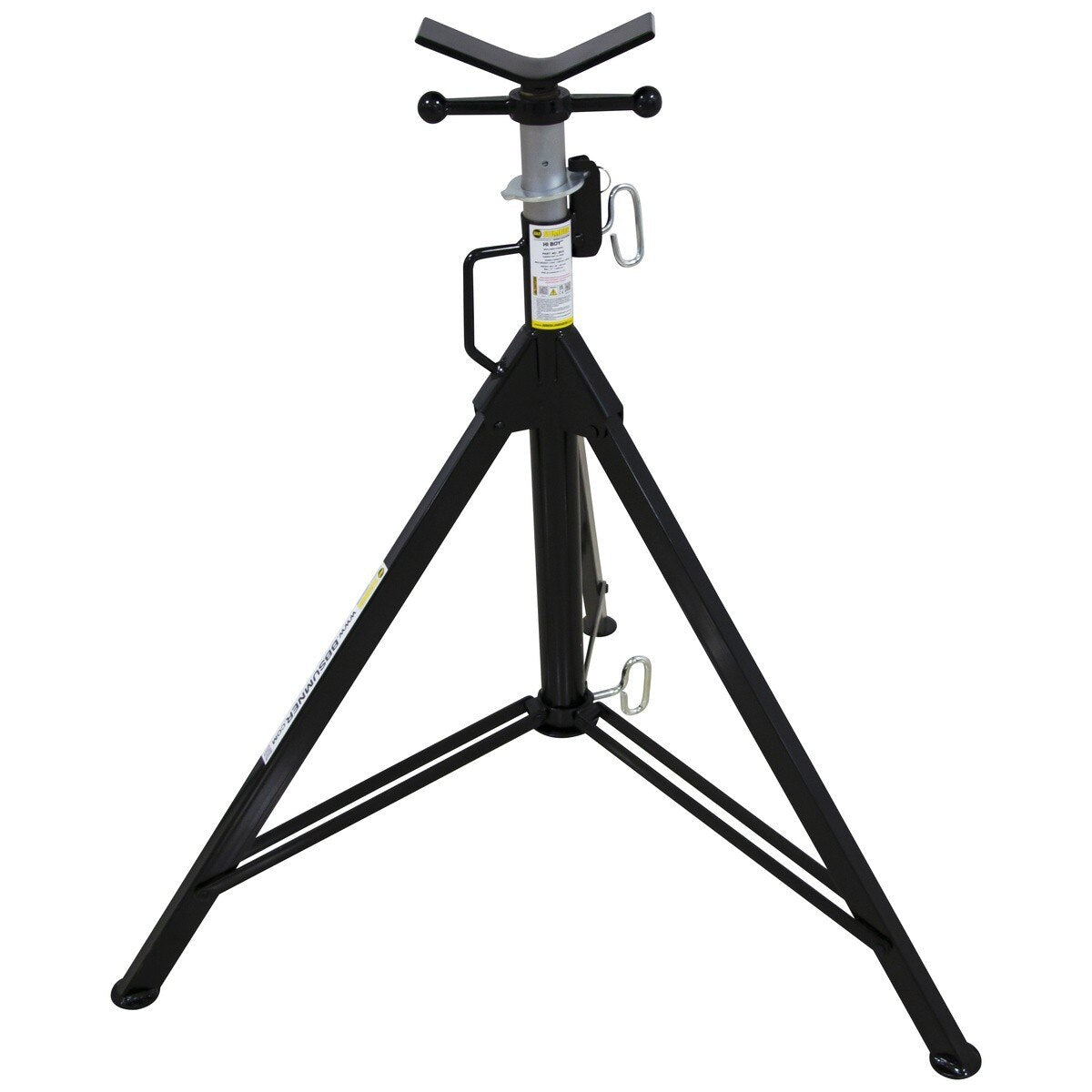

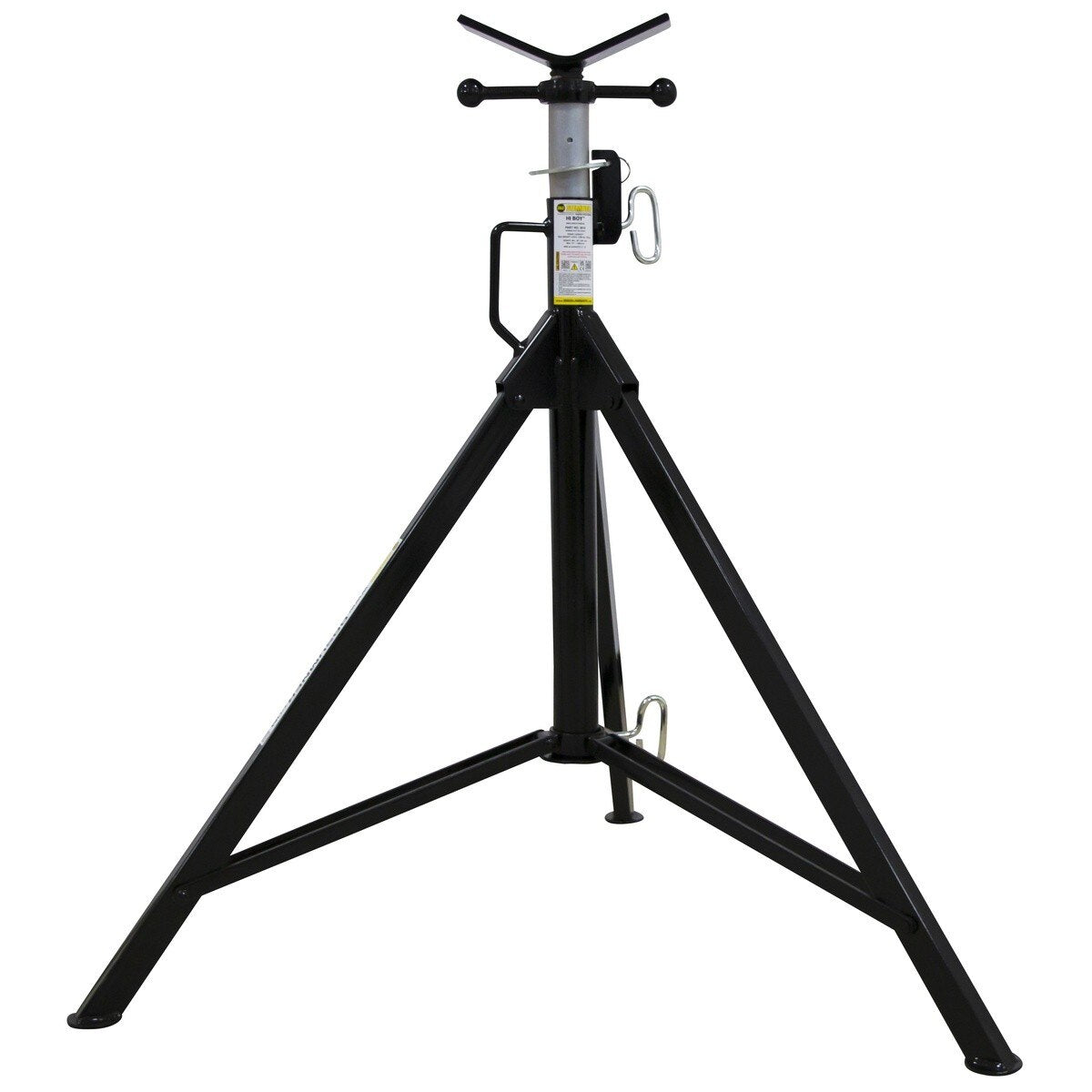

The BBSumner Hi Boy Jack with V-Head is a foldable, high-height pipe jack designed for holding and leveling pipe in elevated work areas. It adjusts from 39 to 72 inches, supports up to 1,000 lb, and features a wide 38-inch footprint for added stability. Compatible with BBSumner slip-on style heads, it handles pipe from 1 to 12 inches in diameter.
BBSumner 3610 Includes
- (1) Hi Boy Jack with V-Head
BBSumner 3610 Features
- Adjustable height range: 39 to 72 inches
- Supports up to 1,000 lb load capacity
- Extra-wide 38-inch footprint for stability
- Foldable design for compact storage and transport
- 1 1/2-inch ACME-thread height adjustment for smooth, precise setting
- Lock washer and quick lock washer for safer, easier height adjustments
- Accommodates 1 to 12 inch pipe diameters
- V-head included as standard head
- Quick-disconnect handle for easier handling and storage
- Bottom T-handle locks folding base into a fixed position
- Compatible with BBSumner pipe jack slip-on style heads (SWH2, PWH2, SSWH2, SSH2, BTH2)
BBSumner 3610 Specifications
| Min. Height | 39 inches (991 mm) |
| Max. Height | 72 inches (1,829 mm) |
| Load Capacity | 1000 lbs (450 kg) |
| Footprint | 38 inches (965.2 mm) |
| Pipe Diameter Capacity | 1 - 12 inches (25.4 - 304.8 mm) |
| Height Adjustment Type | 1 1/2 inch ACME-thread |
| Foldable Design | Yes |
| Head Type | V-head |
| Shipping Weight | 45 lbs (20.4 kg) |
| Shipping Dimensions | 38 x 32 x 39 inches |
| Product Length (in) | 38 |
| Product Width (in) | 32 |
| Product Height (in) | 39 |
| Country of Origin | United States |
